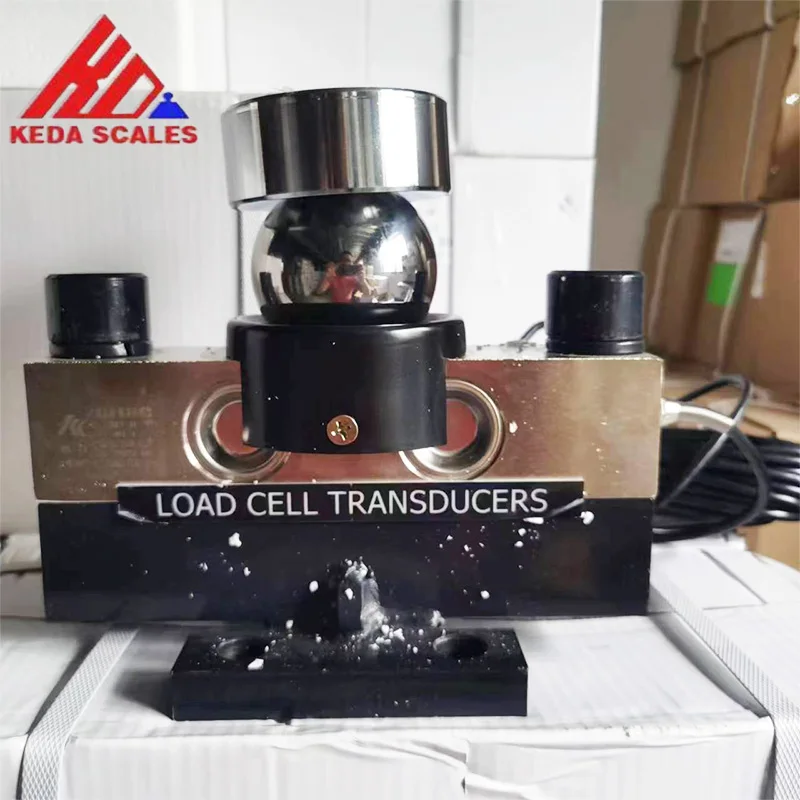

Front photo of the HM9B 30 ton analog load cell showing the spherical load-bearing assembly and mounting base

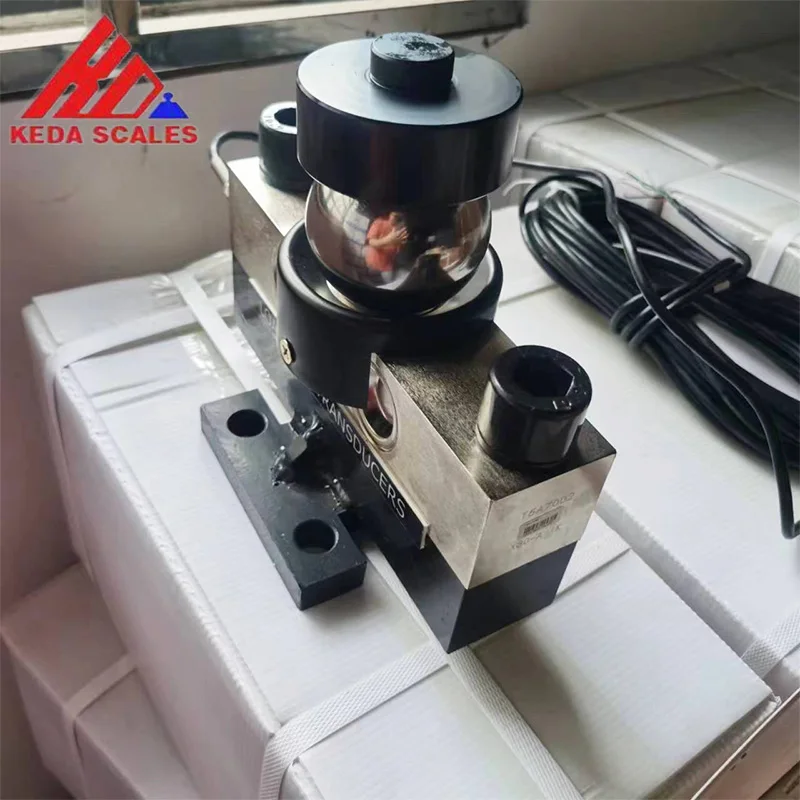

Angled photo of the HM9B 30 ton analog load cell showing the load-bearing assembly, mounting holes and signal cable

HM9B 30 Ton Analog Load Cell

$170

HM9B 30-ton analog dual shear beam load cell for truck and hopper scales. Built with nickel-plated alloy steel, featuring OIML R60 C3 accuracy and IP68 hermetic sealing for harsh environments.

Price for reference only. Please inquire for a final quote.

Inquire Now

Technical Specifications

ModelHM9BCapacity30 t
Sensor typeAnalog dual shear beamMaterialNickel-plated alloy steel
Accuracy classOIML R60 C3Protection ratingIP68
Rated output2.0 ± 0.002 mV/VRecommended excitation5–12 V
Input resistance700 ± 7 ΩOutput resistance700 ± 7 Ω
Operating temperature−35°C to +65°CCompensated temperature−10°C to +40°C
Safe overload150% of rated capacityUltimate overload300% of rated capacity
Wiring4-wire shielded cableApplicationsTruck scales and hopper scales
