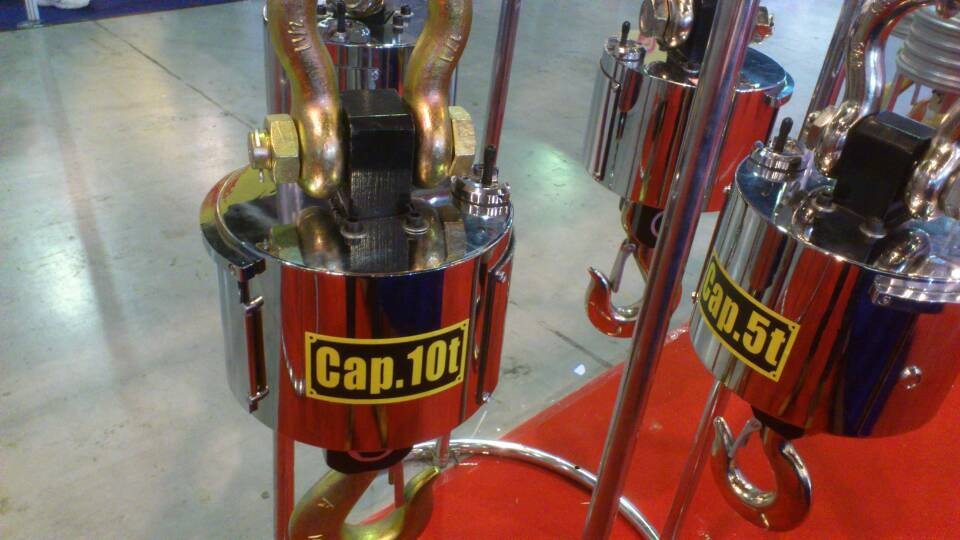

5 to 20 Ton Wireless Crane Scale OCS-E Series 7 - KEDA Scale
5 to 20 ton wireless crane scale system including a robust steel scale body
5 to 20 Ton Wireless Crane Scale OCS-E Series 10 - KEDA Scale

5 to 20 Ton Wireless Crane Scale OCS-E Series

$1,150

OCS-XS(E) wireless crane scale, available in 5, 10 and 20 ton capacities. Alloy-steel scale body, load cell, shackle and hook, with a separate portable LCD indicator and built-in mini dot-matrix printer. 450MHz wireless transmission with a distance greater than 100m. Capacity, indicator, load cell and power supply are customizable.

Price for reference only. Please inquire for a final quote.

Inquire Now

Technical Specifications

ModelOCS-XS(E)Capacity options5 t / 10 t / 20 t
Scale division5 t: 2 kg; 10 t: 5 kg; 20 t: 10 kgHousingAlloy steel
Load cellAlloy steel; customizableIndicatorPortable LCD indicator; customizable
Accuracy classOIML Class IIIShackle and hookAlloy steel
Safe overload120% F.S.Ultimate overload400% F.S.
Battery6V / 4Ah × 2 rechargeable batteriesChargersDC 9V / 1.5A; DC 7.2V / 1A
Battery life100 hours
Wireless frequency450 MHzWireless distance>100 m
Indicator housingAluminium alloy case with ABS portable chassisIndicator dimensions285 × 195 × 63 mm
PrinterBuilt-in mini dot-matrix printerInterfacesRS232 / RS485
Operating temperature−10°C to +40°CWarranty12 months
CustomizationCapacity, indicator, load cell and power supplyManufacturer / BrandFujian Keda Scales Co., Ltd., Fujian, China / KEDA SCALES

Manufacturing Capabilities

A closer look at KEDA’s cutting, welding and surface-preparation equipment.

Steel cutting equipment at the KEDA factory
Steel Cutting Equipment
CNC multi-torch automatic welding machine at the KEDA factory
Automatic Welding Equipment
Shot blasting machine at the KEDA factory
Shot Blasting Machine
