Front view of the A12E weighing indicator with red LED display and function buttons

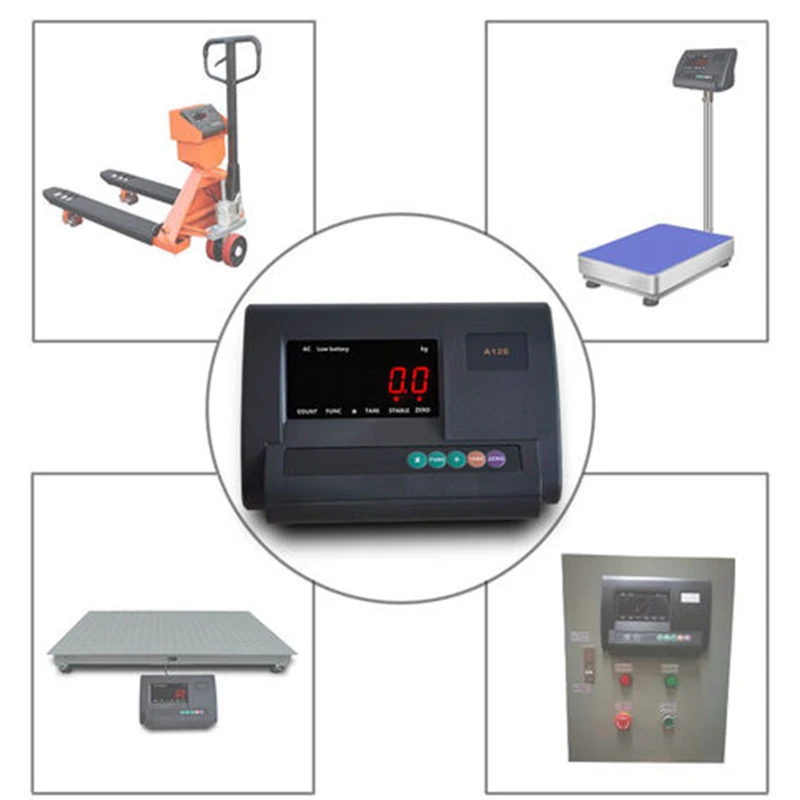

A12E weighing indicator illustrated with pallet, platform and floor scale applications

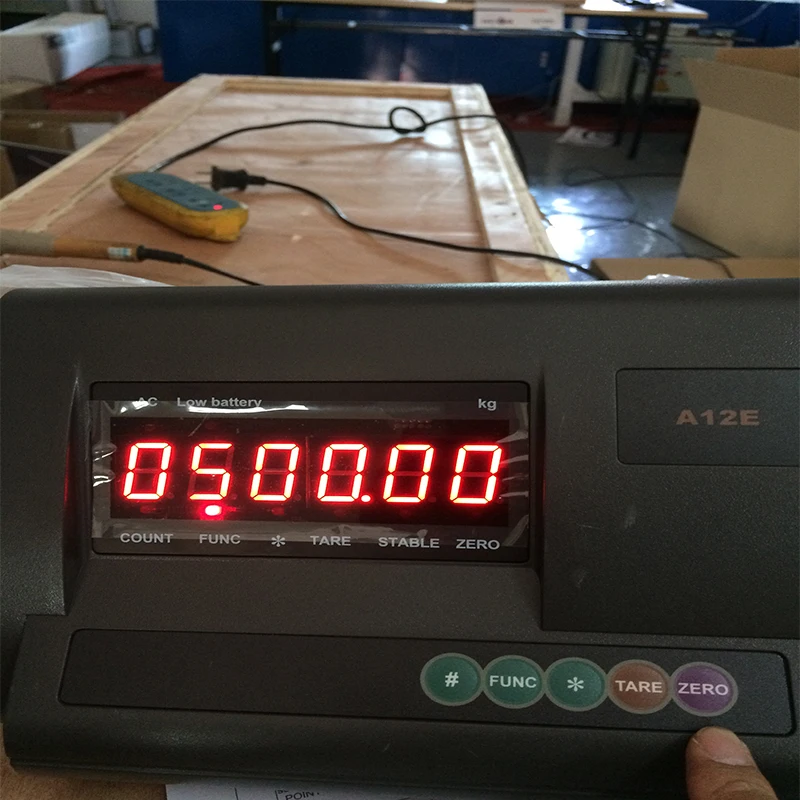

A12E weighing indicator showing a red LED weight reading during testing
Front view of the A12E weighing indicator with red LED display and function buttons
A12E weighing indicator illustrated with pallet, platform and floor scale applications
A12E weighing indicator showing a red LED weight reading during testing

XK3190-A12E LED Digital Weighing Indicator

$35

High-precision A12E LED digital indicator for platform and livestock scales. Drives up to four 350Ω load cells, featuring dynamic animal weighing, peak hold, and dual AC/battery power.

Price for reference only. Please inquire for a final quote.

Inquire Now

Technical Specifications

ModelA12EInput typeAnalog load cells
Display6-digit LEDLoad cell connectionUp to 4 × 350 Ω
Load cell excitationDC 5V, 120mAConversion speed10 samples/s
Power supplyAC 220V, 50HzBattery6V / 4Ah
Operating temperature0°C to +40°CDimensions248 × 160 × 158 mm
Optional interfacesRS232, 20mA remote display output, BluetoothApplicationFloor scales and platform scales

Manufacturing Capabilities

A closer look at KEDA’s cutting, welding and surface-preparation equipment.

Steel cutting equipment at the KEDA factory
Steel Cutting Equipment
CNC multi-torch automatic welding machine at the KEDA factory
Automatic Welding Equipment
Shot blasting machine at the KEDA factory
Shot Blasting Machine
