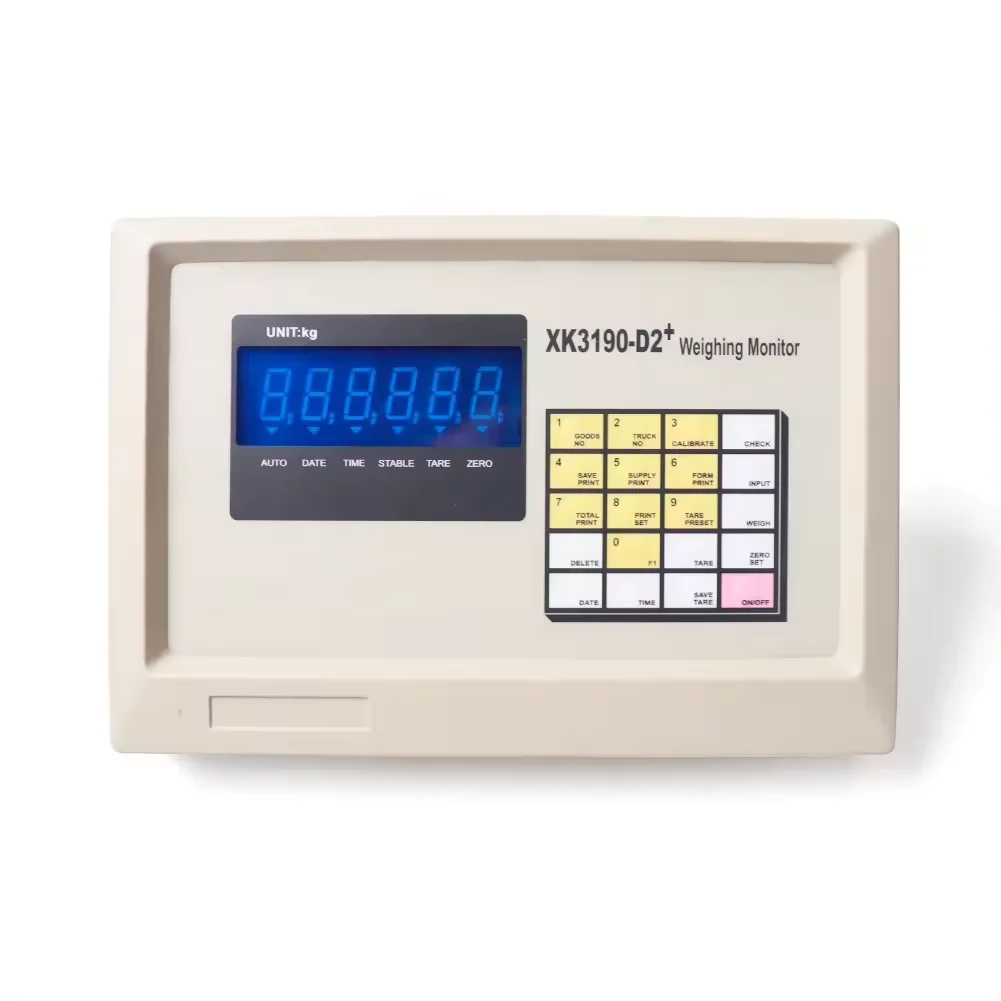

Front of the XK3190-D2+ weighing indicator showing the blue display and numeric keypad
XK3190-D2+ weighing indicator with blue VFD display and numeric keypad
Front of the XK3190-D2+ weighing indicator showing the blue display and numeric keypad

XK3190-D2+ Weighing Indicator

$110

High-performance XK3190-D2+ indicator for analog truck and floor scales. Features a bright six-digit VFD display, standard RS232 communication, and a parallel printer interface.

Price for reference only. Please inquire for a final quote.

Inquire Now

Technical Specifications

ModelXK3190-D2+Input typeAnalog load cells
Display6-digit VFDLoad cell connectionUp to 8 × 350 Ω
Accuracy classClass III; n = 3000Input signal0–30mV
Load cell excitationDC 15V, 350mAConversion speed50 samples/s
Power supplyAC 187–242V, 49–51HzCommunicationRS232; RS422 optional
Printer interfaceParallel output; external printerRemote display output20mA current loop
